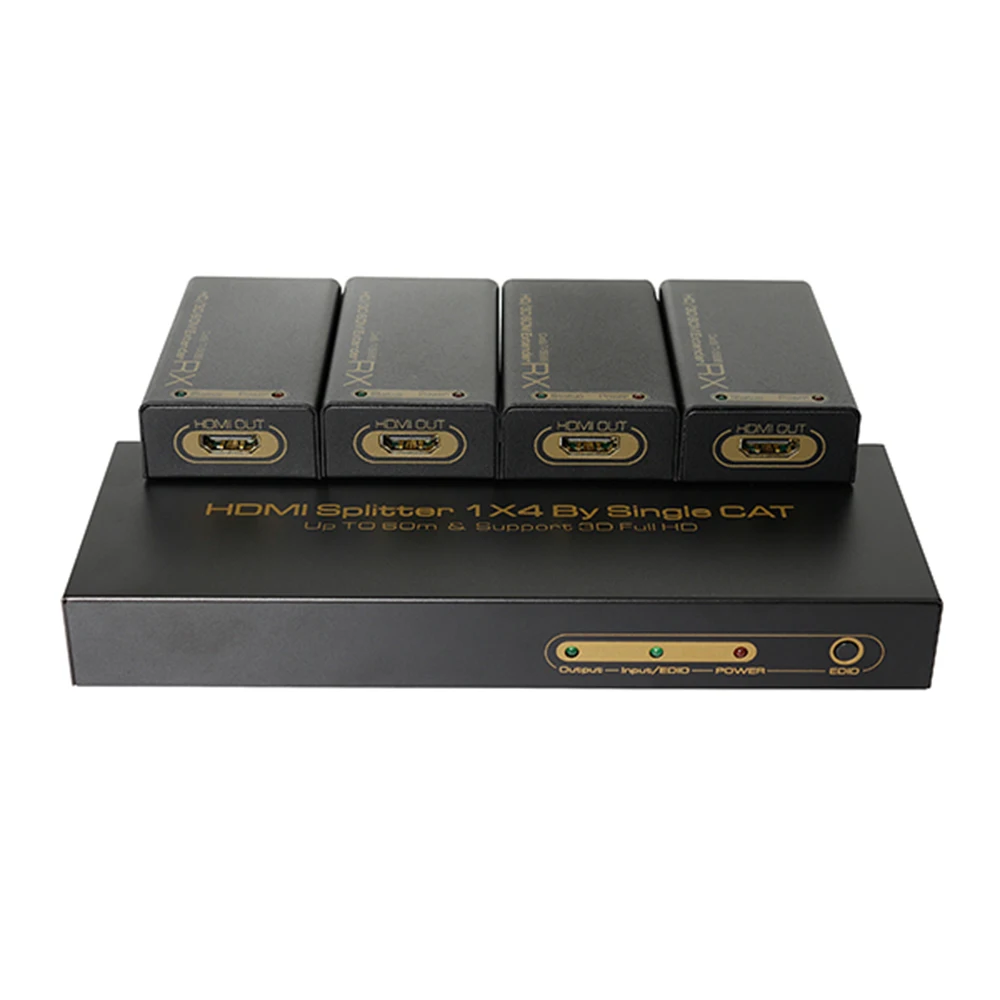

HDMI 1x4 Extender HDMI Splitter Extender по Cat6/7 кабеля до 60 м 1 TX и 4 RX приемник передатчик

Заполнитель

This extender can extend and connect one HD Source to four HD Displays or Projectors byfour pieces of cat6/7 at the same time. The extending distance can reach 60m. This extender meets the needs of multi-route and low-cost HD Signal long distance transmission well.

FEATURES

One HDMI input distribute and extend to four Display by four cat6/7 cable. The extend distance can be up to 60m.Support 3DSupport video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480iAudio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSDLED Status Light：the related led light will go bright.The extend distance can be up to 60m.Support signal retimingInstalls in minutesTX uses the DC5V/3A power adaptor.Four RX: each one uses 5V/1A power adaptorAccessories 5V/3A Power Adapter 1 pcs (for TX)5V/1A Power Adapter 4pcsUser Manual 1 pcsSPECIFICATIONSLength of CAT-6 cable between Rx and TX…..…………….……….…….…….. up to 60mHDMI Input…..…………………...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480iSupport audio format input..………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSDHDMI Output…..…………….…...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480iSupport audio format output...……. …………………………LPCM7.1/DTS/Dolby-AC3/DSDMax bandwidth………………………………………….…………………………………225MHzMax baud rate……………….…….………………….….……….………………………6.75GbpsInput Video signal ………….…………………………...…………………….… 0.5~1.5Volts p-pOutput DDC signal ……………………………………………………………… 5Volts p-p (TT1L)Input HDMI cable distance..…... …………………....….…≤15m AWG26 HDMI standard cableOutput HDMI cable distance…………………..…..….…...≤20m AWG26 HDMI standard cableMax working current(TX)…………………………………………………………………...2000mAMax working current(RX)………………………………………………..…………………...600mAPower adapter format(TX)………….…Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/3APower adapter format(RX)……………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1AOperating Temperature range……..…..………….……………..…………………… (0 to +40℃)Operating Humidity range………………………….….…..…….5 to 90%RH (No Condensation)Dimension (TX)…………………………….…………….……………..………..205x74x26(mm)Dimension (RX)…………………………….………………..……...…(82X44X22) (mm) X4pcs
